EP02 Leather Edge Pull: Matched Core

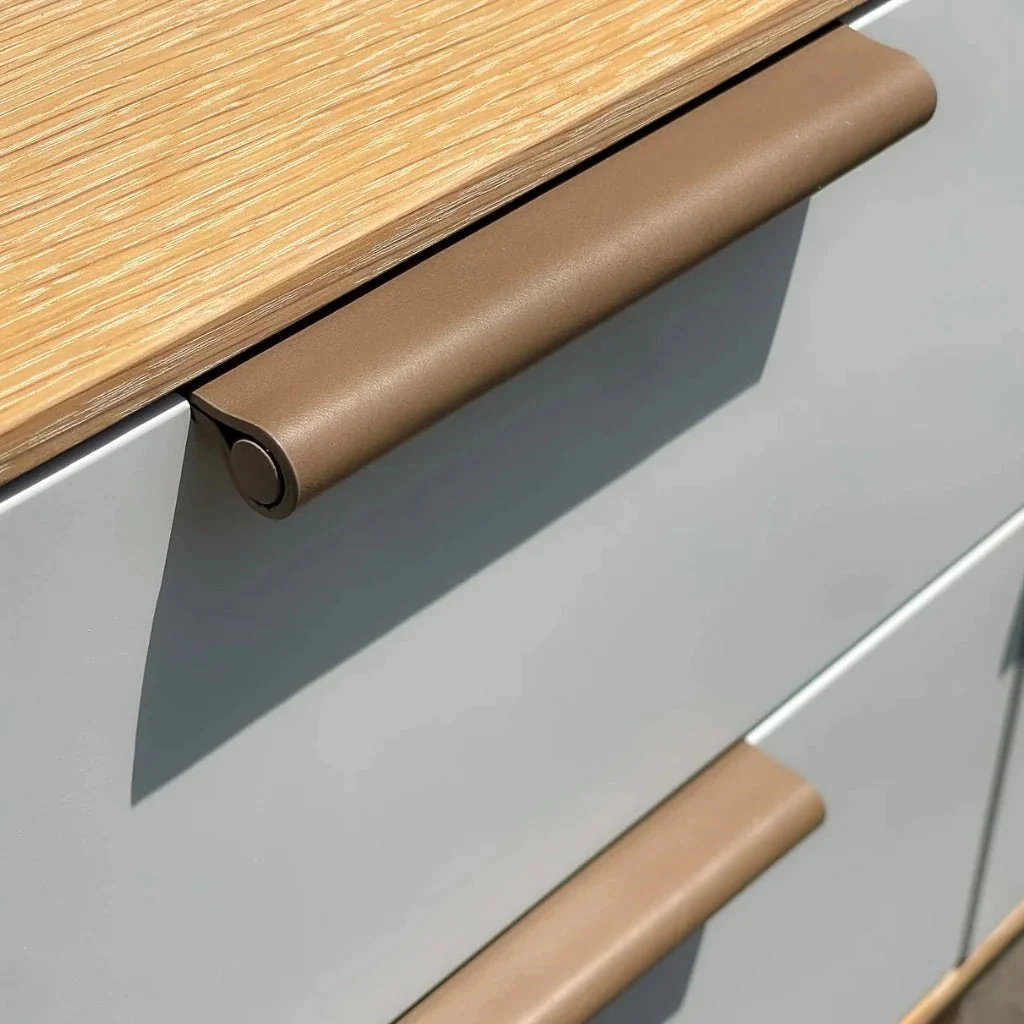

The EP02 Leather Edge Pull (Matched Core) by Chapman & Bose is a recessed edge pull featuring a painted wood core that matches the leather colour — creating a seamless, monochromatic appearance from the front. Installs flush into a recessed groove on 3/4" thick doors or drawer fronts. Available in five lengths.

Designed and crafted in Toronto. Explore the full Chapman & Bose collection.

Specifications

• 2": L 50 mm × D 40 mm (1.6") × H 15 mm (0.6")
• 4": L 102 mm × D 40 mm (1.6") × H 15 mm (0.6")
• 6": L 152 mm × D 40 mm (1.6") × H 15 mm (0.6")
• 8": L 203 mm × D 40 mm (1.6") × H 15 mm (0.6")
• 10": L 254 mm × D 40 mm (1.6") × H 15 mm (0.6")

Tab thickness: 4–5 mm (~1/4"). Pre-cut mounting holes and brass fixing screws included.

Installation Notes

• Designed for 3/4" thick doors or drawer fronts. Custom sizing available for other thicknesses — contact us.
• Install first with a standard #6 square head screw before fitting the slotted screws provided.
• Cut recessed grooves after receiving the product — natural leather thickness may vary slightly.
• For commercial installations, apply Loctite or a similar thread-locking adhesive to the barrel screws.

Materials

Top grain leather with matched painted wood core. Due to the natural characteristics of leather, variation in tone and texture is expected across pieces.

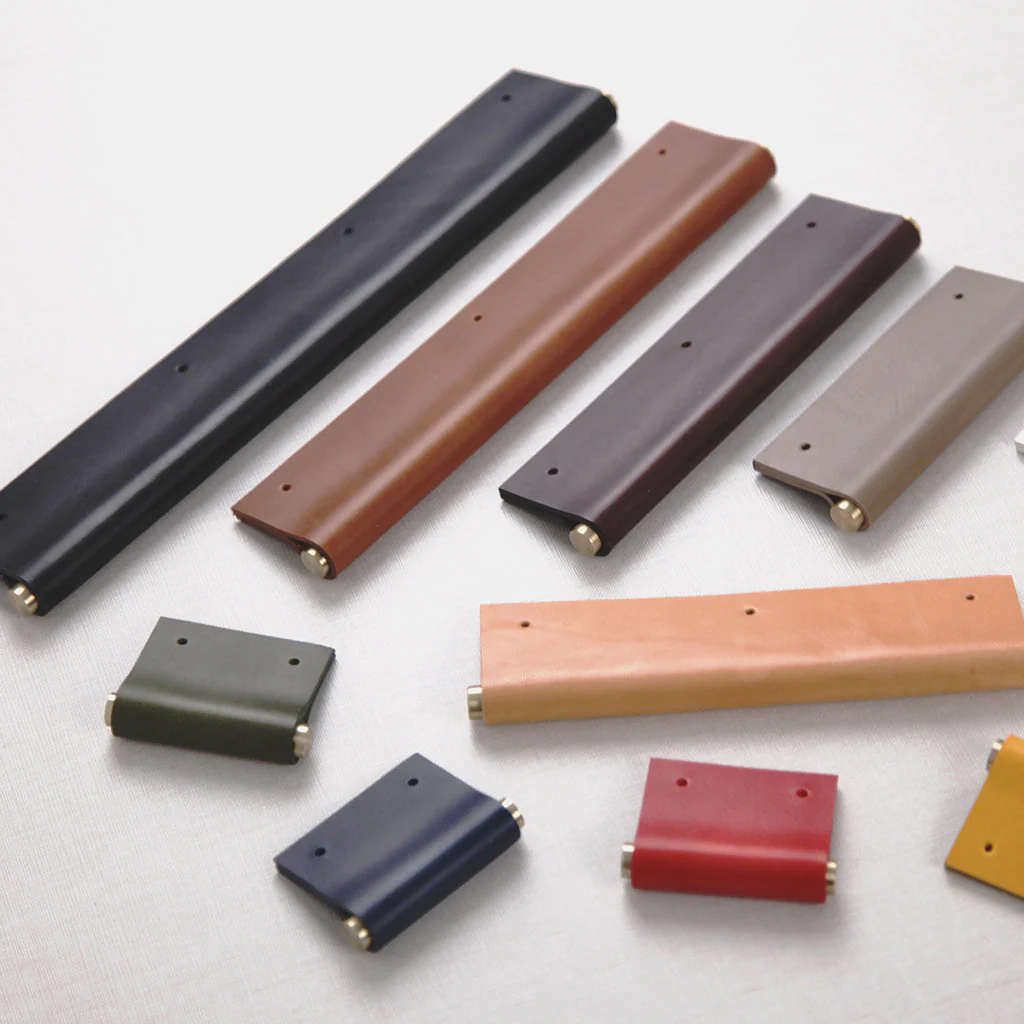

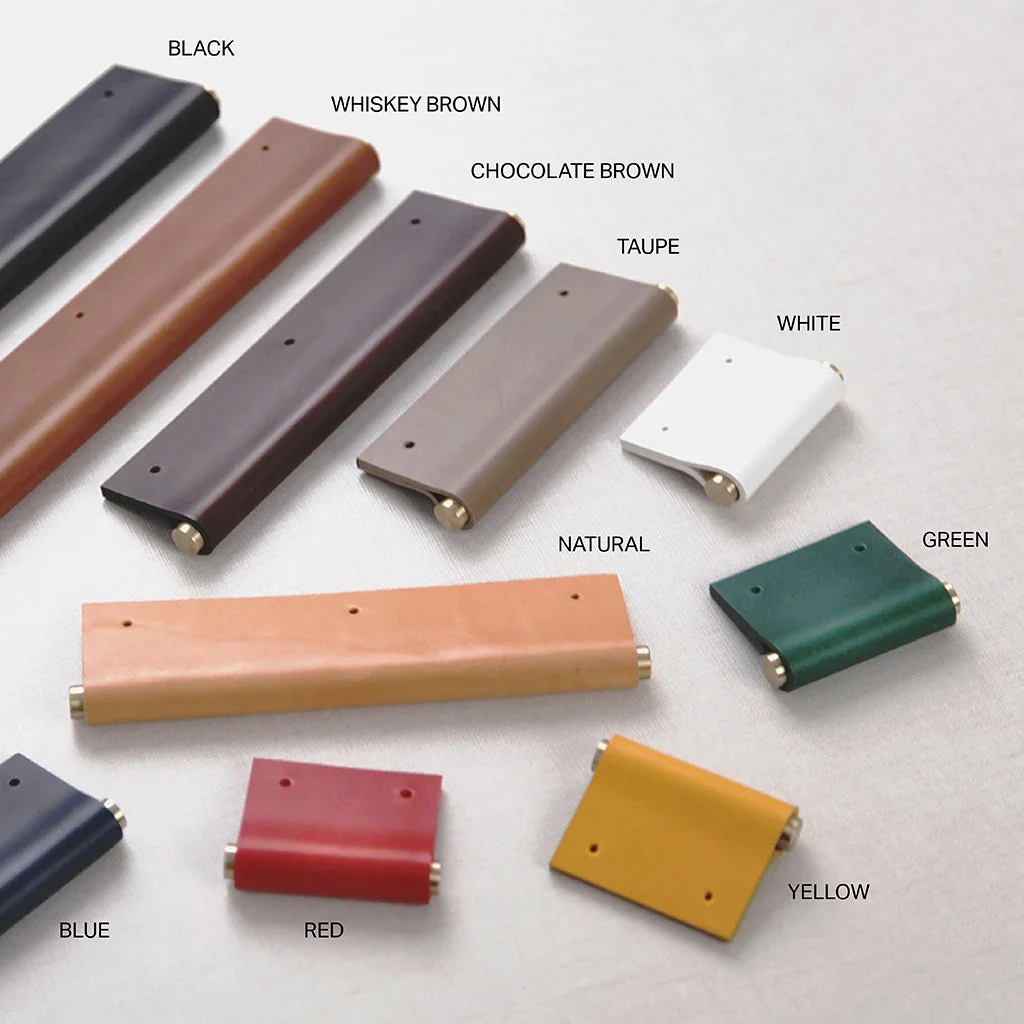

Leather Colours

• Black leather / black core
• Taupe leather / taupe core
• Whiskey Brown leather / whiskey brown core
