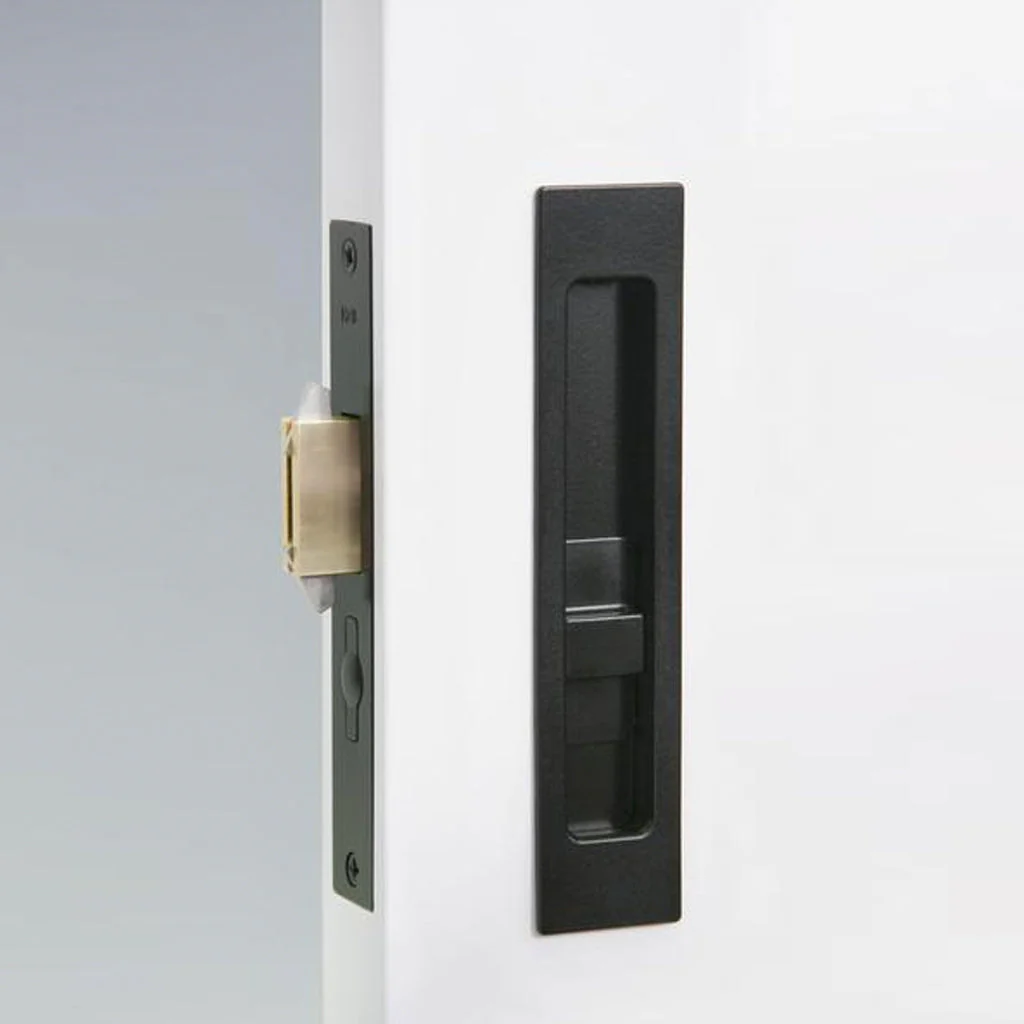

HB 690 Flush Pull Privacy Lock

The HB 690 Flush Pull Privacy Lock by Halliday Baillie is a premium privacy lockset for sliding bathroom and pocket doors. Includes a snib flush pull on the inside (slides up to lock), an emergency release flush pull on the outside, and a small recessed edge pull for door retrieval from the pocket.

Made in New Zealand. Sold as a complete set.

Configurations

• HB 690 — Snib Inside / Emergency Release Outside
• HB 692 — Snib Inside / Blank Outside
• HB 693 — Snib Inside / No Pull Outside
• HB 694 — Snib Pulls to Both Sides

Contact us for alternate configurations.

Double Door Application

For double sliding doors: specify the HB 697 Strike Body with Edge Pull for the passive leaf, and add HB 660 Flush Pulls to match.

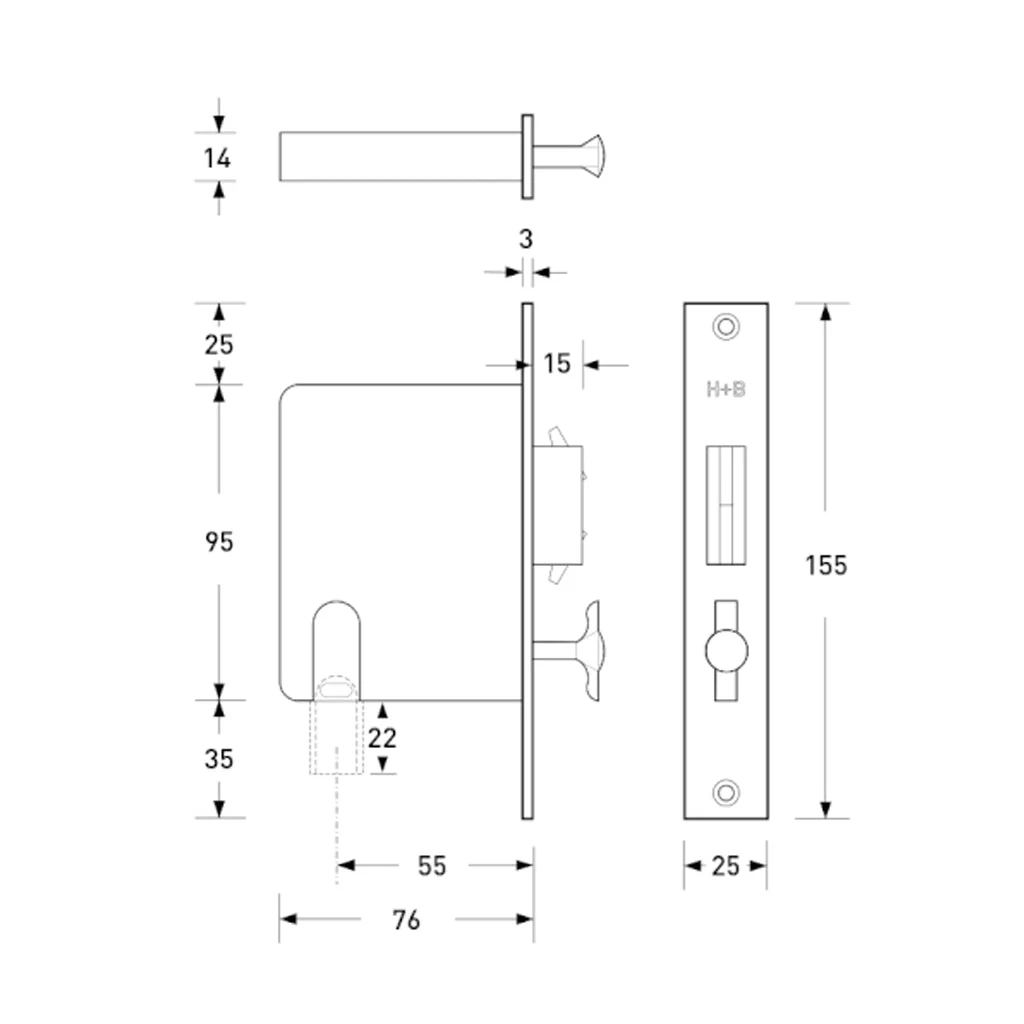

Specifications

• Pull size: L 170 mm (6.7") x W 36 mm (1.4") x D 11 mm (0.4")
• Backset: 55 mm
• Minimum door thickness: 38 mm (for 35–38 mm doors, specify HB 690/35 with shallower pulls)
• Suitable for timber or aluminium doors

Adhesives are not required or recommended for installation.

Components Included

• HB 690 Series Lock Body
• 2 x Flush Pulls
• HB 604 Timber Fixing Kits
• Strike Plate & Dust Box
• Spindle (specify door thickness when ordering)
• All required fasteners

Materials

Diecast zinc, brass, and 316 stainless steel components.

Available Finishes

• SC: Satin Chrome
• PC: Polished Chrome
• BN: Brushed Nickel
• WHT: Powder Coat White
• EBA: Powder Coat Electro Black Ace
• EMB: Powder Coat Electro Medium Bronze
• KC: Matte Black Chrome
• ORB: Oil Rubbed Bronze
• EFW: Electro Flat White
• EDB: Electro Dark Bronze

See full Halliday Baillie Finish Guide.

Product Downloads

• HB 690 Cut Sheet (PDF)
• HB Full Catalogue (PDF)
