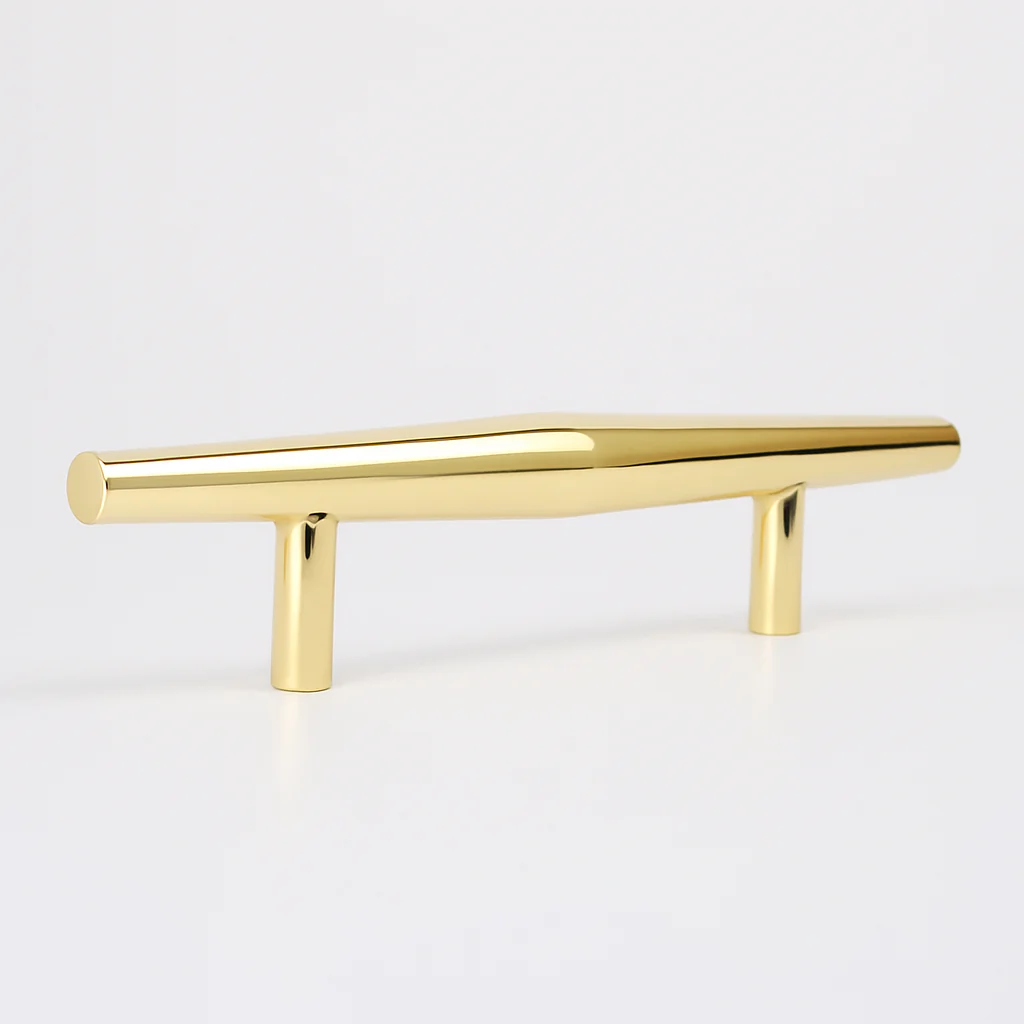

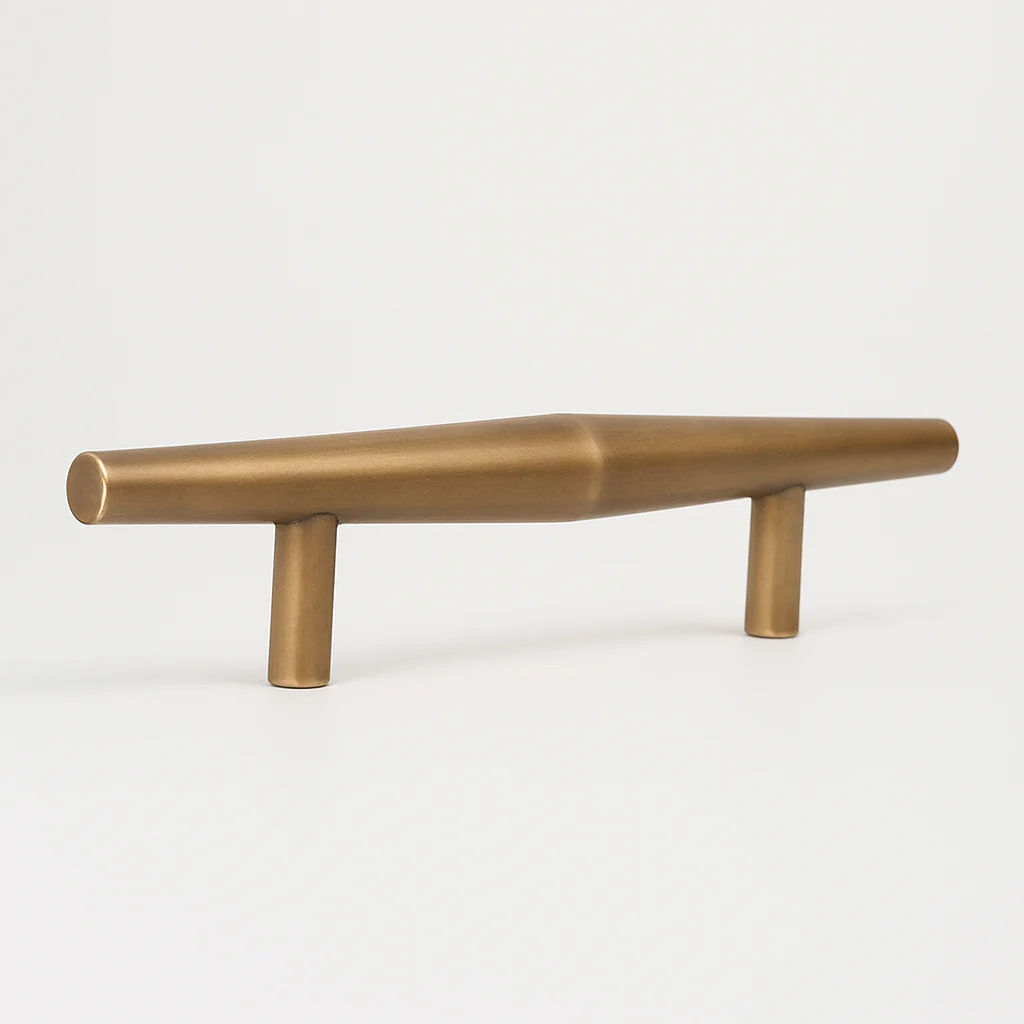

Charlie Bicone Door Pull

The Charlie Bicone Door Pull by CBH is a solid brass door pull with a classic bicone geometric form. Available in two lengths with single-sided and back-to-back mounting options for wood, metal, and glass doors. See more from the Charlie collection.

Made in Canada.

Specifications

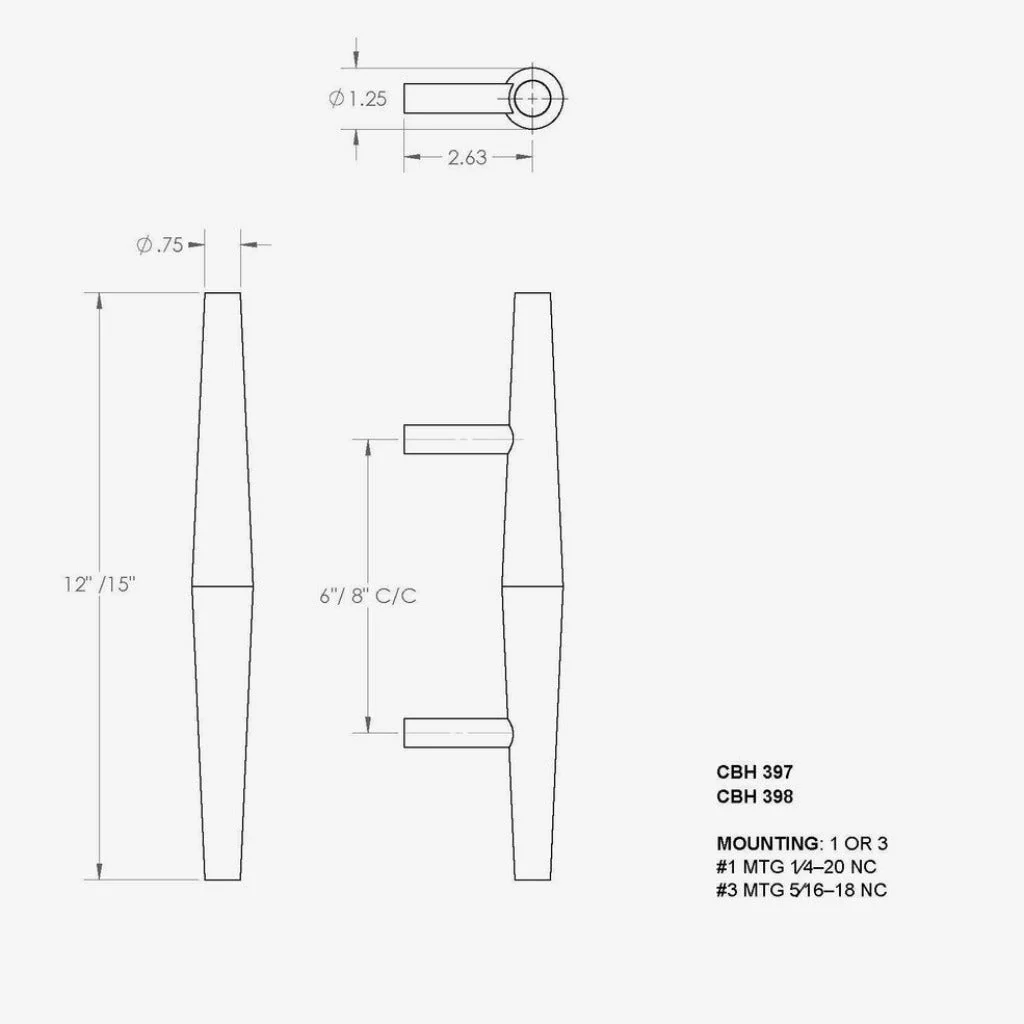

• Size Options
• 12": Ø 32 mm (0.75") x D 76 mm (2.6") — Centre to Centre: 152.4 mm (6")
• 15": Ø 32 mm (0.75") x D 76 mm (2.6") — Centre to Centre: 203.2 mm (8")
• Mounting Options
• Single Pull — single-sided wood or metal door: 44 mm (1-3/4") thickness
• Double Pull — back-to-back wood or metal door: 44 mm (1-3/4") thickness
• Single Pull — single-sided glass door: 13 mm (1/2") glass thickness
• Double Pull — back-to-back glass door: 9.5 mm (3/8")–12.7 mm (1/2") glass thickness
• Glass hole prep: Hole cannot be less than the thickness of the glass. Typically prepped at 1/2" or 5/8" — the included washer covers the hole and serves as a stop for the mounting bolt.
• Custom lengths and back-to-back options available — contact us. Mounting hardware included.

Materials

Available Finishes

• Satin Stainless Steel
• Polished Chrome
• Satin Aluminum
• Lacquered Satin Brass
• Unlacquered Satin Brass
• Lacquered Polished Brass
• Unlacquered Polished Brass
• Antique Brass
• Powder Coat Matte Black
• Powder Coat Gloss White
• Powder Coat Ivory
• Custom finishes available upon request, including antimicrobial clear coating

Material Notes

• Antique and oxidized finishes are hand-applied, resulting in unique, organic surface variations.
• Lacquered finishes maintain a consistent appearance over time. Unlacquered finishes will naturally age and develop a patina.
• Most finishes are lacquered by default. Satin Nickel, Satin Chrome, and Satin Stainless Steel are unlacquered. Oxidized Bronze is lacquered unless requested otherwise.
• See the Care & Maintenance Guide.
