Mono Flat LIN-X Hinge

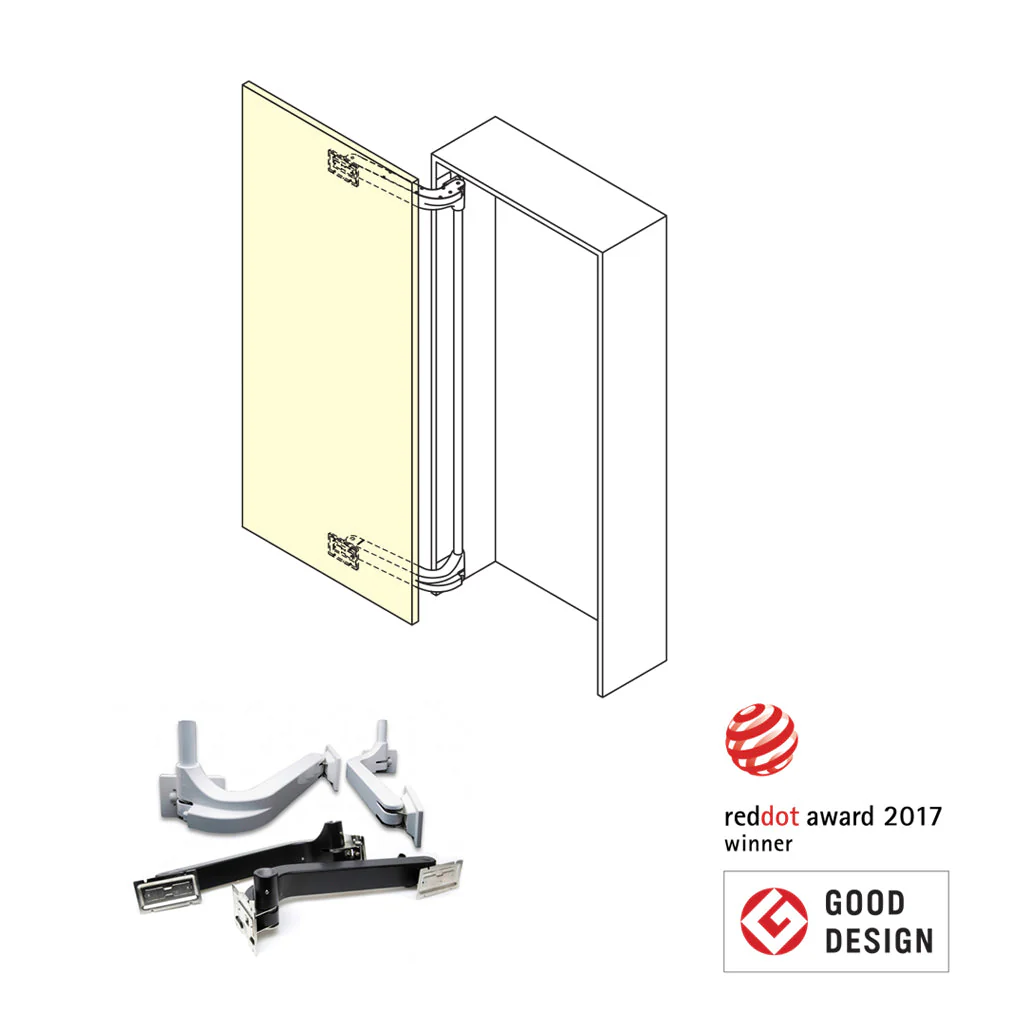

The Mono Flat LIN-X Hinge by Sugatsune is a soft-close hinge that enables a door to swing open laterally in a compact arc — ideal for tight spaces where traditional door clearance is limited. Flush-to-wall design with a sleek, minimal appearance. Winner of the Red Dot Design Award 2017.
Specifications
- Door width: 750–1100 mm (29.5"–43.3")
- Max door height: 2980 mm (117.3")
- Door thickness: 24–40 mm (15/16"–1.57")
- Max door weight: 90 kg (198 lbs)
- Only 6 components required for installation
- Free-stop and soft-close functionality
- Fully adjustable: vertical (±7 mm), horizontal (±7 mm), depth (±5 mm), parallel angle (±3°)
- Handle can be installed anywhere on the door surface
Materials
Steel and aluminum. Available in white or black.
Product Downloads
Product Video
Select Finish
From $1,855.60
Mono Flat LIN-X Hinge—
$1,855.60
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Mono Flat LIN-X Hinge by Sugatsune is a soft-close hinge that enables a door to swing open laterally in a compact arc — ideal for tight spaces where traditional door clearance is limited. Flush-to-wall design with a sleek, minimal appearance. Winner of the Red Dot Design Award 2017.
Specifications
- Door width: 750–1100 mm (29.5"–43.3")
- Max door height: 2980 mm (117.3")
- Door thickness: 24–40 mm (15/16"–1.57")
- Max door weight: 90 kg (198 lbs)
- Only 6 components required for installation
- Free-stop and soft-close functionality
- Fully adjustable: vertical (±7 mm), horizontal (±7 mm), depth (±5 mm), parallel angle (±3°)
- Handle can be installed anywhere on the door surface
Materials
Steel and aluminum. Available in white or black.
