Tectus TE 240 3D Hinge for Residential Doors

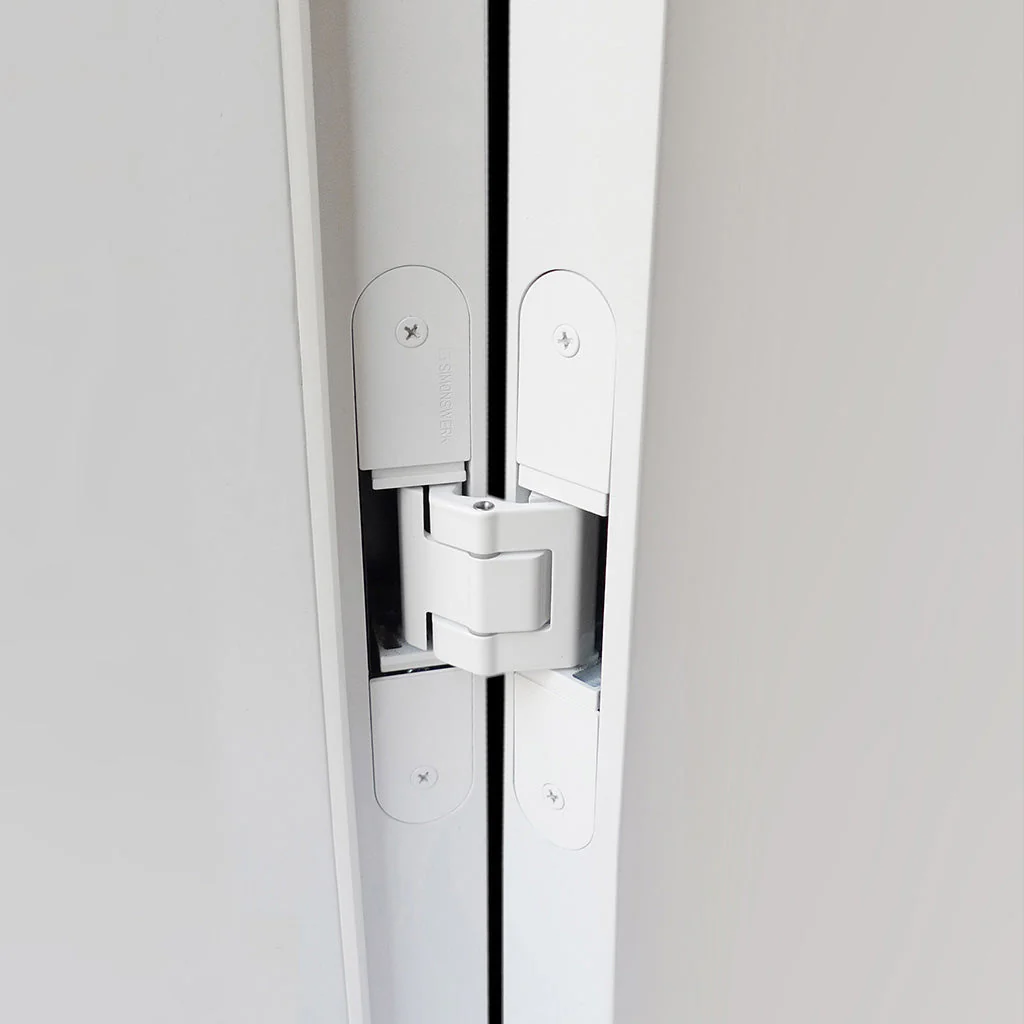

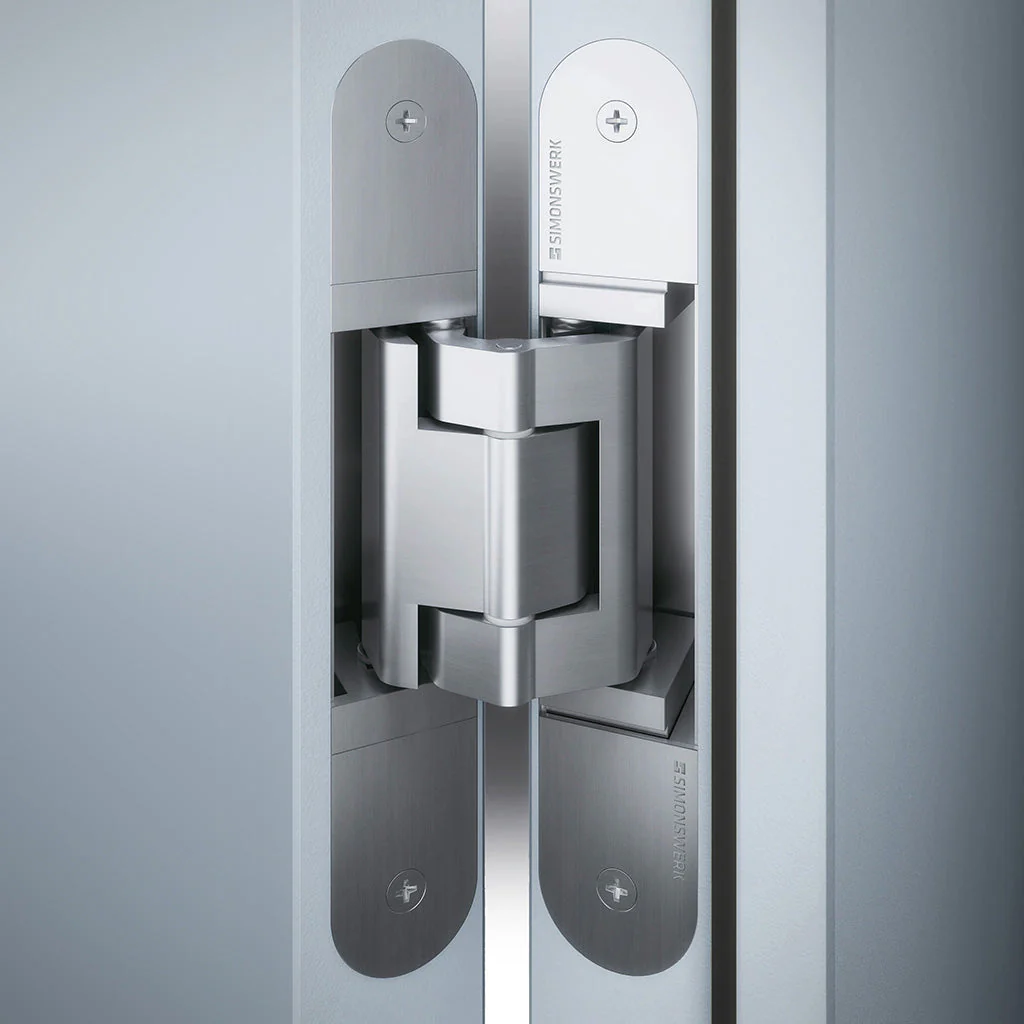

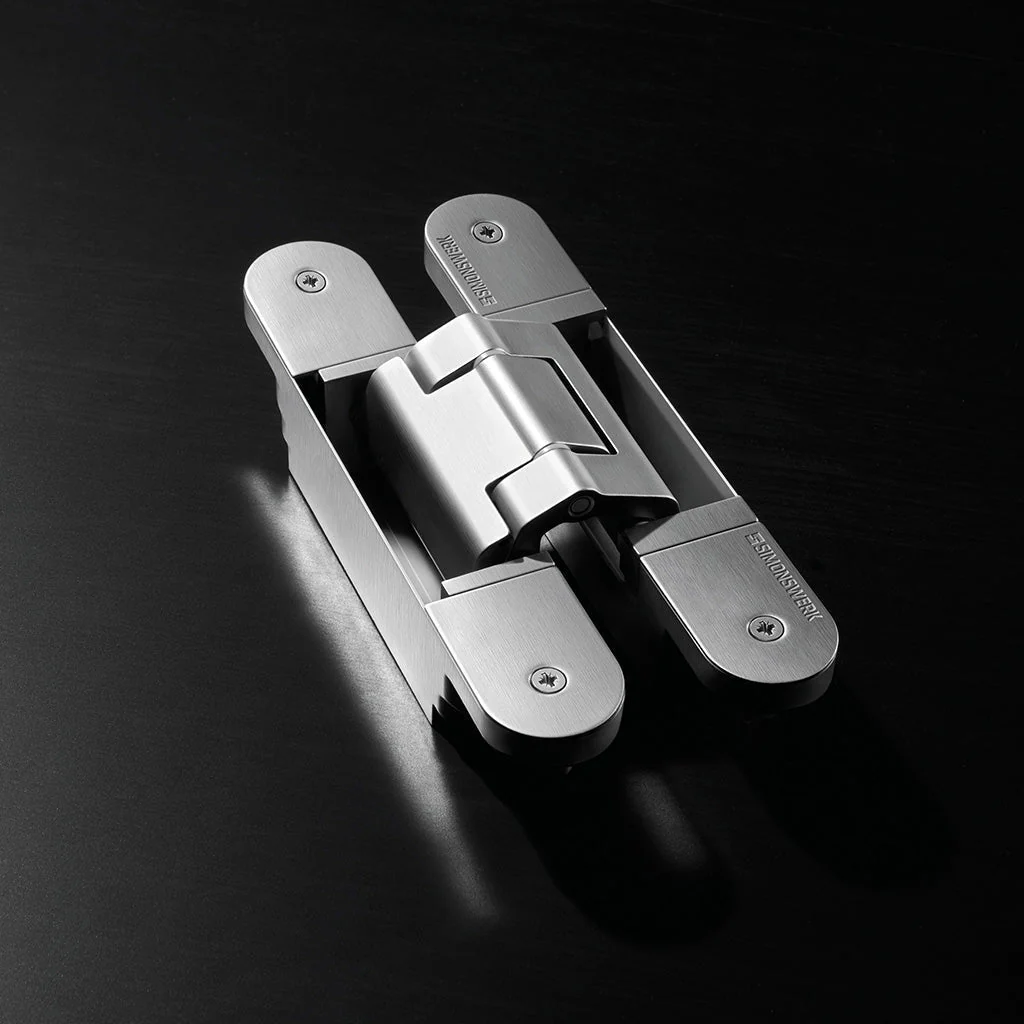

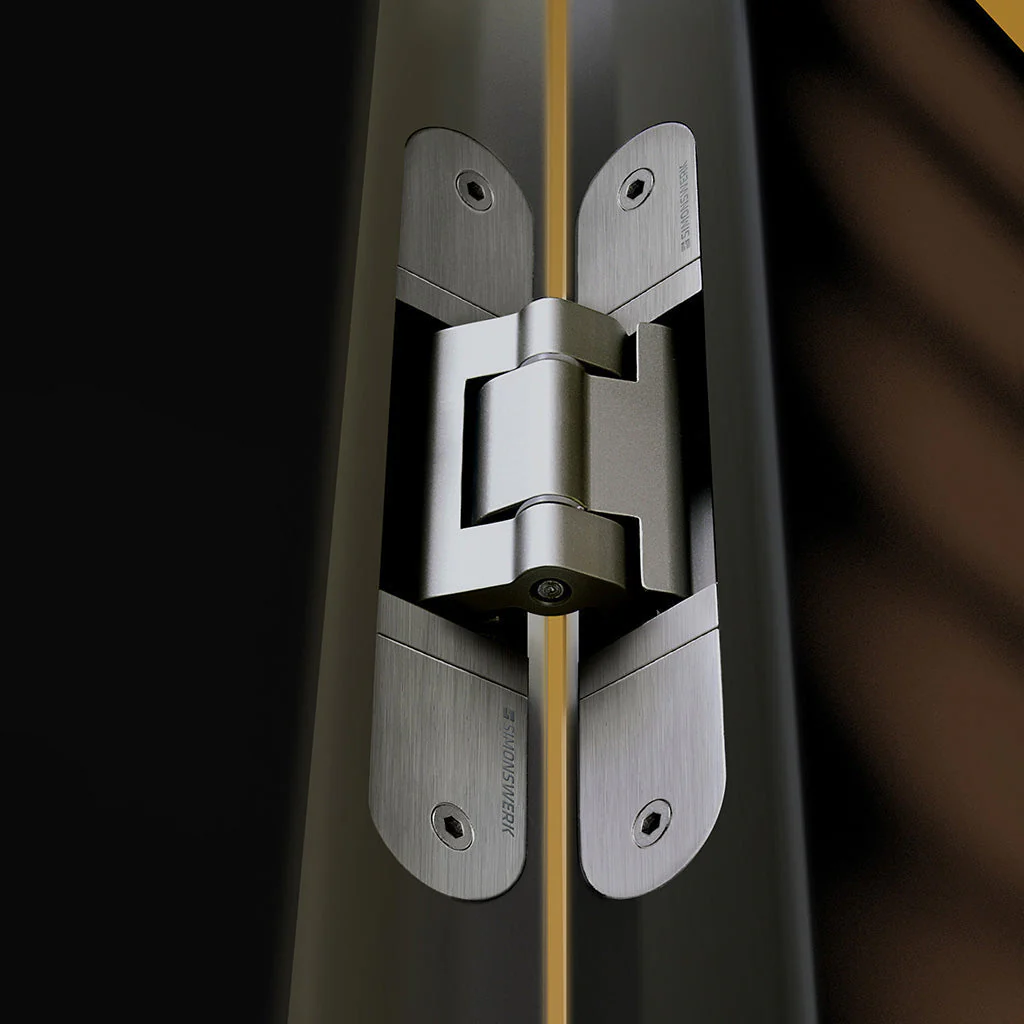

The TECTUS® TE 240 3D by Simonswerk is a concealed hinge for premium flush doors in residential applications. Easily adjustable in three dimensions using a hex key — the sideways-closed hinge body creates a homogeneous mortise appearance when the door is closed. Maintenance-free bearings rated for 1,000,000 cycles under full load.

Made in Germany.

Specifications

• Frame part: H 155 mm (6.1") x W 21 mm (0.82") x D 24 mm (0.94")
• Leaf part: H 155 mm (6.1") x W 18 mm (0.7") x D 27 mm (1.06")
• Minimum door thickness: 25 mm (1")
• Router bit diameter: 16 mm
• 3D adjustment: side ±3.0 mm, height ±3.0 mm, compression ±1 mm
• Load capacity (2 hinges): 60 kg
• Opening angle: 180°
• 10-year warranty
• Rated for up to 1,000,000 cycles

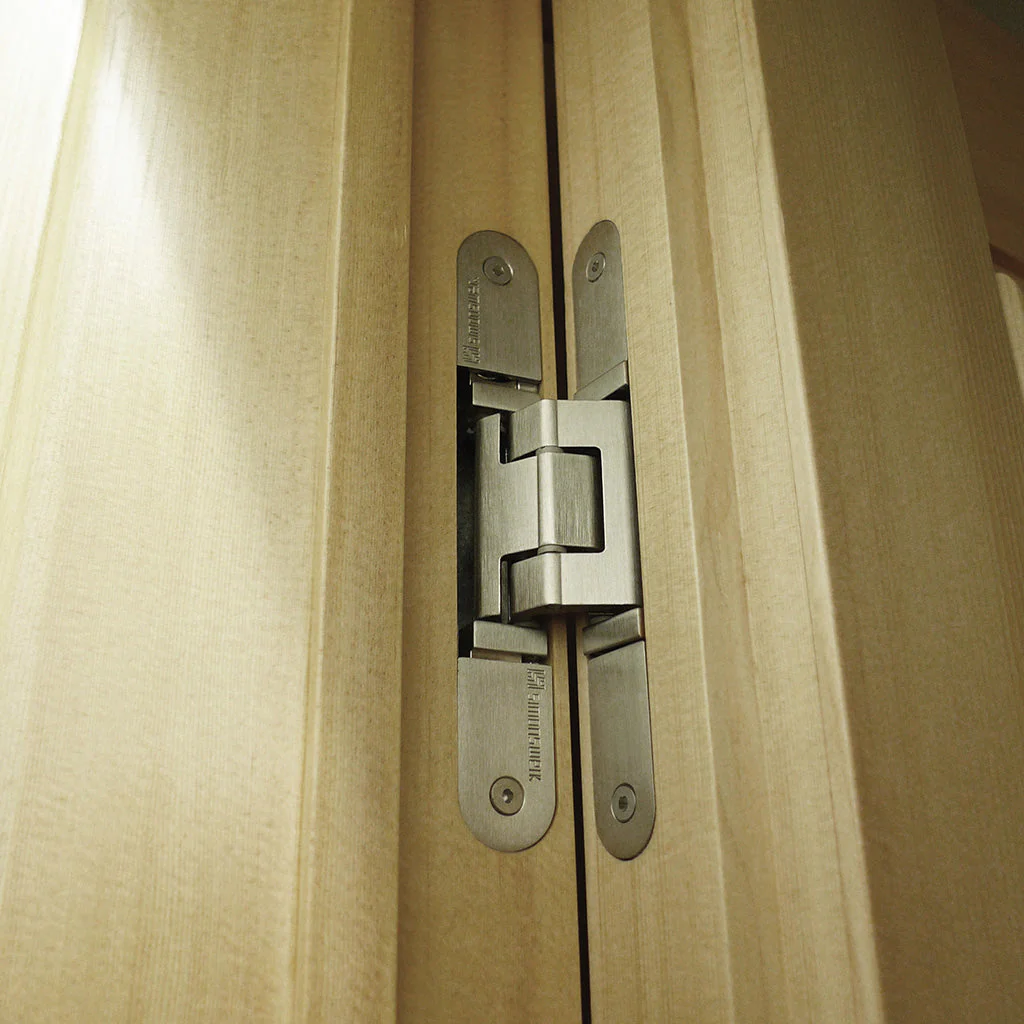

For unrebated and rebated flush doors. Compatible with wood, steel, and aluminum frames. Router templates sold separately.

Can be paired with Ghostop Concealed Door Stop for automatic holding positions.

Materials

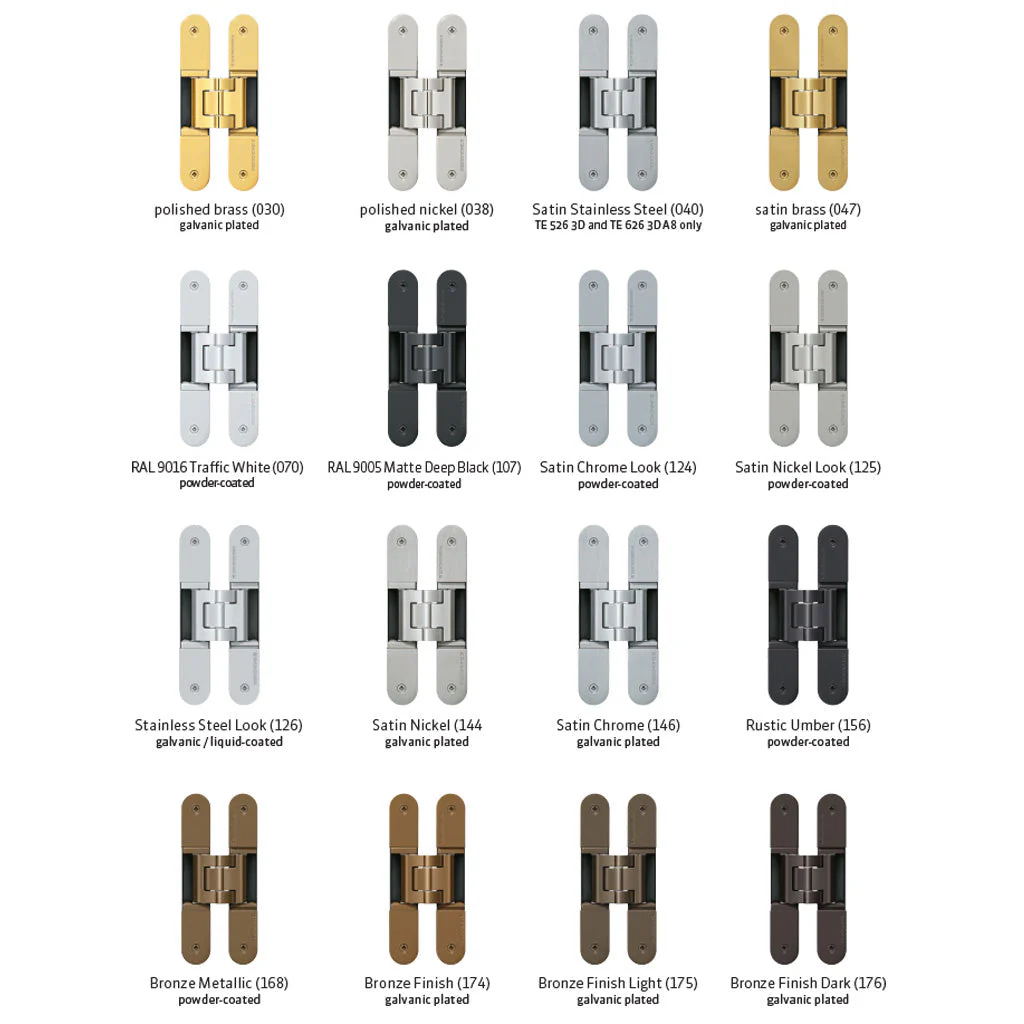

Available Finishes (16 options)

• Rustic Umber
• Traffic White (RAL 9016)
• Matte Deep Black (RAL 9005)
• Satin Chrome Look
• Satin Nickel Look
• Satin Stainless Steel Look
• Satin Nickel
• Polished Nickel
• Satin Brass
• Polished Brass
• Satin Chrome
• Polished Chrome
• Bronze Metallic
• Bronze Finish
• Bronze Finish Light
• Bronze Finish Dark

Product Downloads

Product Sheets

• Tectus TE 240 3D Fitting Instructions
• Tectus TE 240 3D Adjustment Instructions
• Tectus TE 240 3D Data Sheet
• Tectus TE 240 3D Certifications
• Tectus Hinges Brochure
• Load Capacity
• Corrosion Resistance/Salt Spray Test
• Tectus Warranty and Terms

2D CAD Drawings

• Tectus CAD Drawings

Installation & Care

• Tectus TE 240 3D Installation Instructions
