Tectus TE 340 3D for Residential and Heavy-Duty Doors

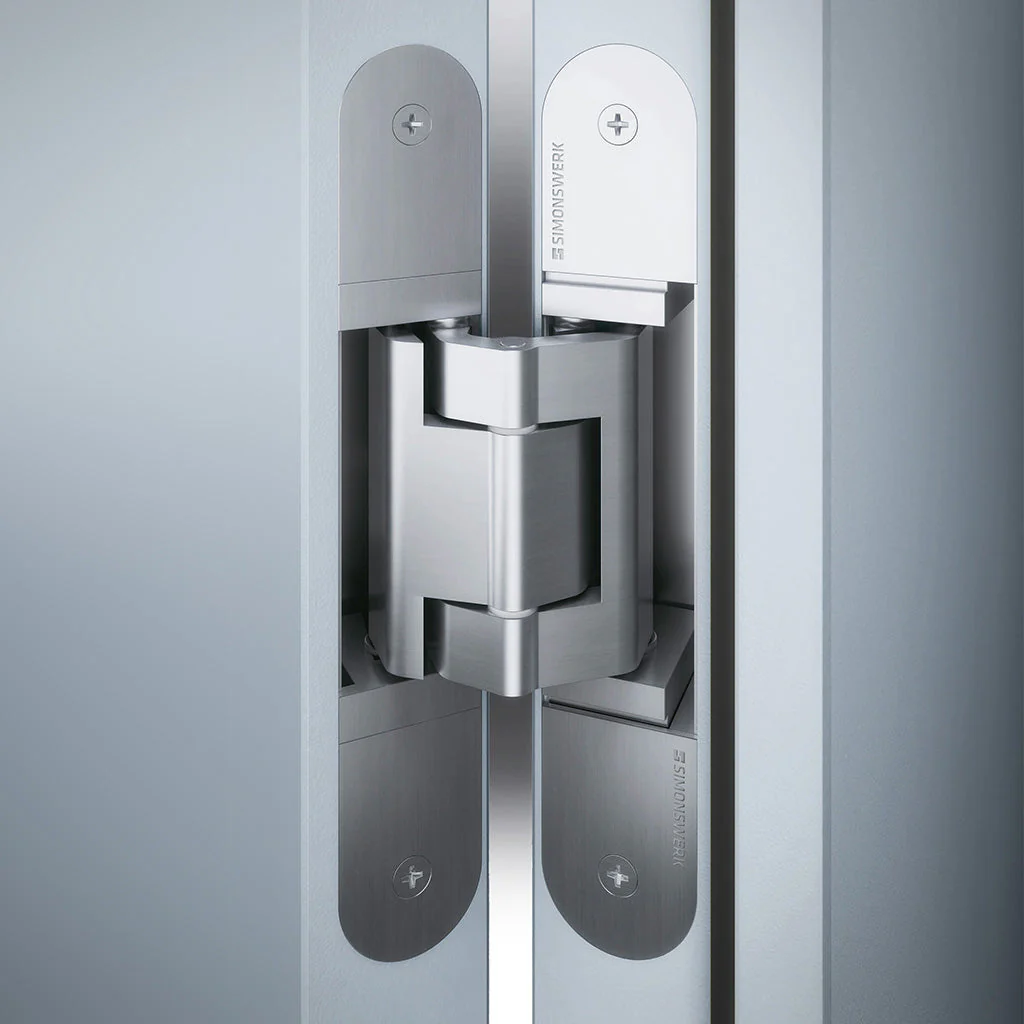

The Tectus TE 340 3D by Simonswerk is a concealed hinge for unrebated residential and heavy-duty doors. Sideways-closed hinge body creates a clean, homogeneous mortise appearance when the door is shut. Three-dimensional adjustment allows precise alignment in wood, steel, or aluminum frames using the included hex key. Maintenance-free bearings rated to 1,000,000 cycles under full load.

Made in Germany.

Specifications

• Frame part: H 155 mm (6.1") x W 21 mm (0.82") x D 24 mm (0.94")
• Leaf part: H 155 mm (6.1") x W 18 mm (0.7") x D 27 mm (1.06")
• Minimum door thickness: 25 mm (1")
• Router bit diameter: 16 mm
• 3D adjustment: side ±3.0 mm, height ±3.0 mm, compression ±1.5 mm
• Load capacity (2 hinges): 60 kg (132 lbs)
• Opening angle: 180°
• 10-year warranty
• Rated for up to 1,000,000 cycles
• Compatible with Ghostop Concealed Door Stops for automatic holding positions

Router templates for installation sold separately.

Materials

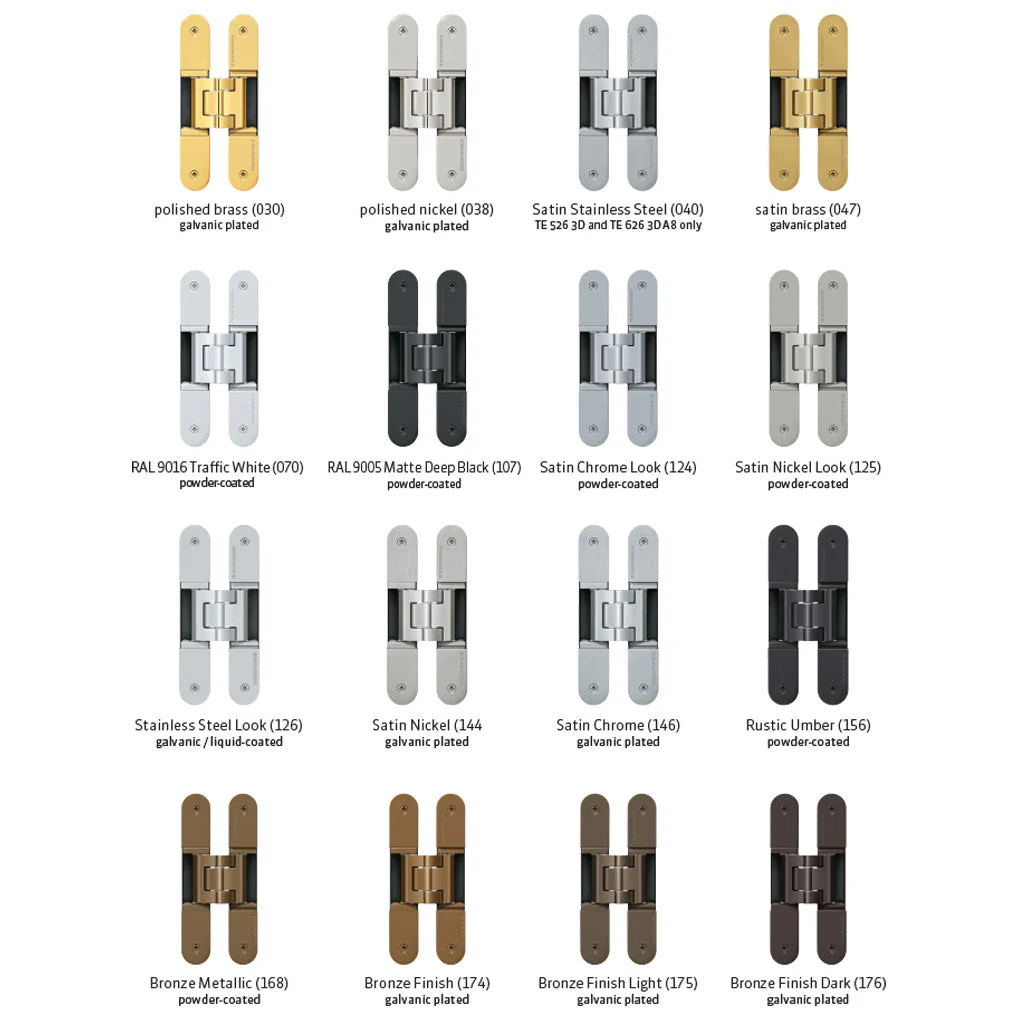

Available Finishes (16 Options)

• Rustic Umber
• Traffic White RAL 9016
• Matte Deep Black RAL 9005
• Satin Chrome Look
• Satin Nickel Look
• Satin Stainless Steel Look
• Satin Nickel
• Polished Nickel
• Satin Brass
• Polished Brass
• Satin Chrome
• Polished Chrome
• Bronze Metallic
• Bronze Finish
• Bronze Finish Light
• Bronze Finish Dark

Product Downloads

Product Sheets

• Tectus TE 340 3D Data Sheet
• Tectus TE 340 3D Load Capacity
• Tectus TE 340 3D Certifications
• Tectus Hinges Brochure
• Tectus Energy Hinges Brochure
• Tectus UL Fire Rating Certification
• Corrosion Resistance/Salt Spray Test
• Tectus Warranty and Terms

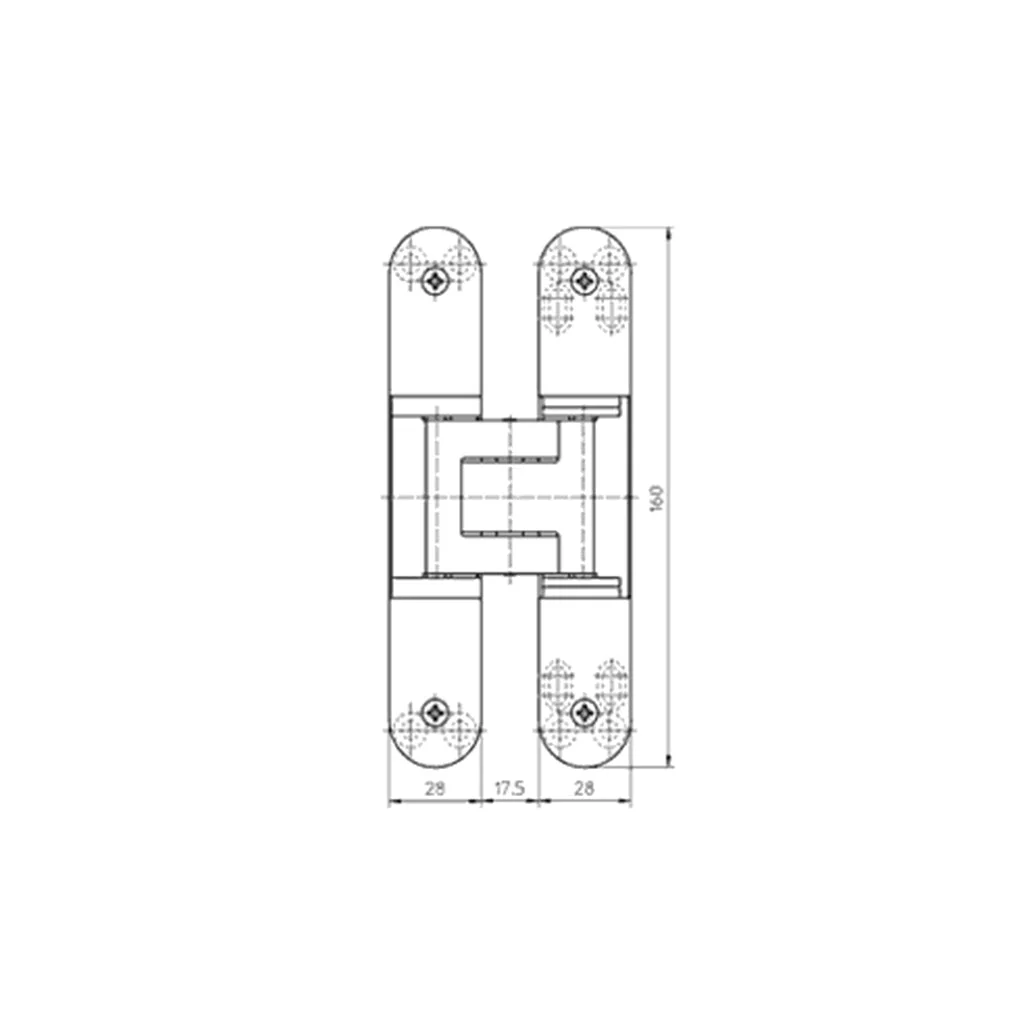

2D CAD Drawings

• Tectus CAD Drawings

Installation & Care

• Tectus TE 340 3D Installation Instructions
